SmartSwitch digital distribution system is an edge computing system developed by Xiamen Minghan Electric Co., Ltd. according to the latest requirements of intelligent distribution products. The system integrates the core capabilities of network, calculation, storage and application, integrates advanced medium voltage switchgear, ring network cabinet and low-voltage cabinet equipment, effectively realizes the near end condition monitoring, programmed control and intelligent management, and has full power monitoring, system operation condition monitoring, energy saving management, location status management, equipment life cycle management, environmental monitoring Network communication and data application.
System functional features
Full charge application

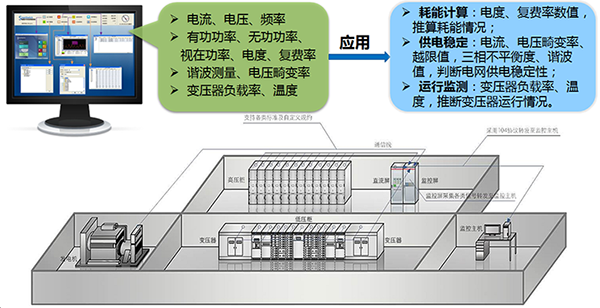

SmartSwitch digital distribution system can collect current, voltage, frequency, active power, reactive power, apparent power, kwh, complex rate, harmonic measurement, voltage distortion rate, transformer load rate, temperature, etc. of switchgear equipment to form curve report data, which provides strong data support for energy saving management, power supply stability judgment and power quality monitoring.
.png)
System operation status
SmartSwitch digital distribution system monitors and manages the parameter performance, insulation strength, leakage current, temperature rise and service life of the switchgear in real time by monitoring the long-term operation process of the switchgear. Including contact temperature control monitoring, partial discharge on-line monitoring, circuit breaker mechanical performance monitoring, etc.
.jpg)
.jpg)
Energy saving management
SmartSwitch digital distribution system conducts energy efficiency analysis for the collected energy consumption data, including power analysis, load analysis, maximum value analysis, energy consumption comparison at monitoring points, energy consumption early warning, high-power load energy-saving monitoring, etc.
Location status management
The position and state management of SmartSwitch digital distribution system includes: circuit breaker opening and closing position, handcart position, ground knife position, spring energy storage position, remote position, transformer door opening signal, line breaking signal
.jpg)
.jpg)
Equipment life cycle health management
The whole life cycle management of SmartSwitch digital distribution system equipment refers to the management of all equipment related data from the production process, factory inspection, power transmission acceptance, operation data, equipment troubleshooting data, preventive test data and so on.
environmental monitoring
The environmental monitoring functions of SmartSwitch digital distribution system include: Environmental video monitoring, ambient temperature / humidity monitoring, smoke alarm monitoring, lighting control system, air conditioning control system and door control system.
Network Communications
The equipment monitoring functions of SmartSwitch digital distribution system include equipment drop monitoring, communication message monitoring, drop log, communication configuration, system configuration, drop alarm, IP modification, etc.
.jpg)
.jpg)
Data application
SmartSwitch digital distribution system provides better services for the safe operation of distribution equipment, green energy saving and prolonging the life cycle of equipment by mining and integrating all useful information for the distribution system
